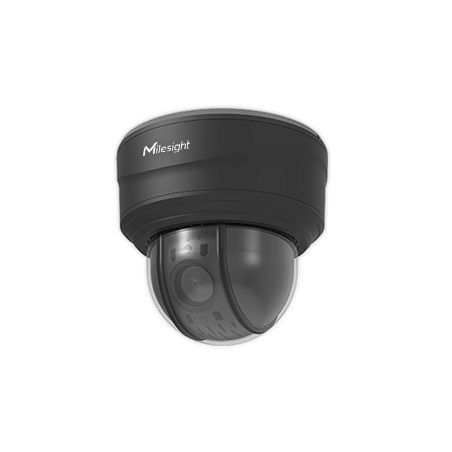

MS-C2971-X12RPE PTZ DOMO 12X 2MP NDAA

Cámara PTZ Domo AI 12X PTZ

2MP · AI · Zoom óptico 12X · 3 en 1 Super WDR Pro · 0.002Lux Ultra Low-light · IP66 · IK10 · Seguimiento automático PTZ · Posicionamiento 3D · Detección de movimiento PTZ · Hasta 100 fps · Lente 5.3~64mm · IR 160mts · Cumple con NDAA

Análisis de video con IA.
Conteo de personas
Detección de caras
Última tecnología LED IR
Diseño con diferentes opciones instalación
Soporte SIP/VoIP
LED blanco inteligente
Seguimiento automático de PTZ
Posicionamiento 3D
Desempañado Integral

* Admite PoE; Tarjeta SD, hasta 256G, protección contra sobretensiones de 4KV

* 300 Puntos Preestablecidos, 8 Patrullas, hasta 48 preestablecidos cada patrulla; 4 patrones

* Panorámica sin fin de 360°, velocidad manual de panorámica: 0,1°~450°/s, velocidad preestablecida: 450°/s

* Inclinación de -5°~90°, Velocidad manual de inclinación: 0,1°~360°/s, Velocidad preestablecida: 360°/s

Opcional:

* Alta velocidad de fotogramas: (Serie -T: 2 MP a 100 fps + Super WDR Pro)

* Carcasa negra; Cubierta de cúpula ahumada AC-71

Funcionalidad PTZ avanzada

Alcanzando una panorámica sin fin de 360°, inclinación de giro automático de -5°~90° y zoom óptico de 12X/20X/23X, que son la funcionalidad principal de la cámara domo PTZ, la cámara de red domo AI PTZ puede moverse para omnidireccional y de largo alcance vigilancia. Para obtener un rendimiento oportuno y eficiente, la cámara posee la velocidad de giro e inclinación sin igual y el posicionamiento 3D. Puede enfocar y capturar rápidamente sin siquiera parpadear.

Camera	Name	2MP 12X AI PTZ Dome Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
	WDR	140dB Super WDR (Super WDR Pro is optional for T Series)
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	S/N	>55dB
	Digital Zoom	16X
	Lens	Focal Length	5.3∼64mm, 12X Optical Zoom
Zoom Speed		Approx 4s (Wide-Tele)
Field of View		H61°∼H5°/D69°∼D5°/V36°∼V2°
Focus Control		Auto/Semi-Auto/Manual
Minimum Working Distance		1000/1500mm (Wide/Tele)
Aperture		F1.6∼F2.8
Iris Control		Auto
PTZ		Pan Range/Pan Speed	360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s
	Tilt Range/Tilt Speed	-5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s
	Proportional Zoom	Support
	Preset Quantity	300
	Patrol	8 Patrols, up to 48 presets each patrol
	Pattern	4 Patterns
	Auto Tracking	Support
	Power Off Memory	Support
	Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
	IR	Irradiation Distance	Up to 160m
Irradiation Angle		Auto/Manual
Video		Max. Image Resolution	1920x1080
	Primary Stream	60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
	Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
	Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
	Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
	Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)
	Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
	ROI	Up to 8 areas
	Image Settings	Saturation/Brightness/Contrast/Sharpness
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		1/1
Alarm I/O		1/1
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Audio	Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate		8/16/32/44.1/48KHz
Audio Bit Rate		16~256kbps
Two-way Audio		Support
Intelligent Analytics		Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face detection	Detect and capture faces, get real-time snapshots
	People Counting&Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
	System	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function		BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support		Yes, Voice&Video-over-IP
Event Trigger		Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action		FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
System Compatibility		ONVIF Profile G & Q & S & T, API
General		Working Condition	Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
	Power Supply	PoE(802.3at)/ DC 12V/3A ±10%
	Power Consumption	11W MAX/ 19W MAX(With IR on)
	Weather Proof	Up to IP66-rated for Weather-resistant Performance
	Housing	Vandal-proof IK10-rated Metal Housing
	Surge Protection	4KV
	Dimensions	Φ183mmX174.8mm
	Weight	2Kg
	Warranty	2 Years/3 Years(Optional)

Referencia MS-C2971-X12RPE

Ficha técnica

Lentes: 5.3~64mm
Distancia IR: 160 mts
Estructura: PTZ Domo
Resolución: 2Mp 1920x1080

Descargas

Ficha Técnica

Milesight-AI-12X&20X&23X-PTZ-Domo-IP-Datasheet

Descargas (1.52MB)
