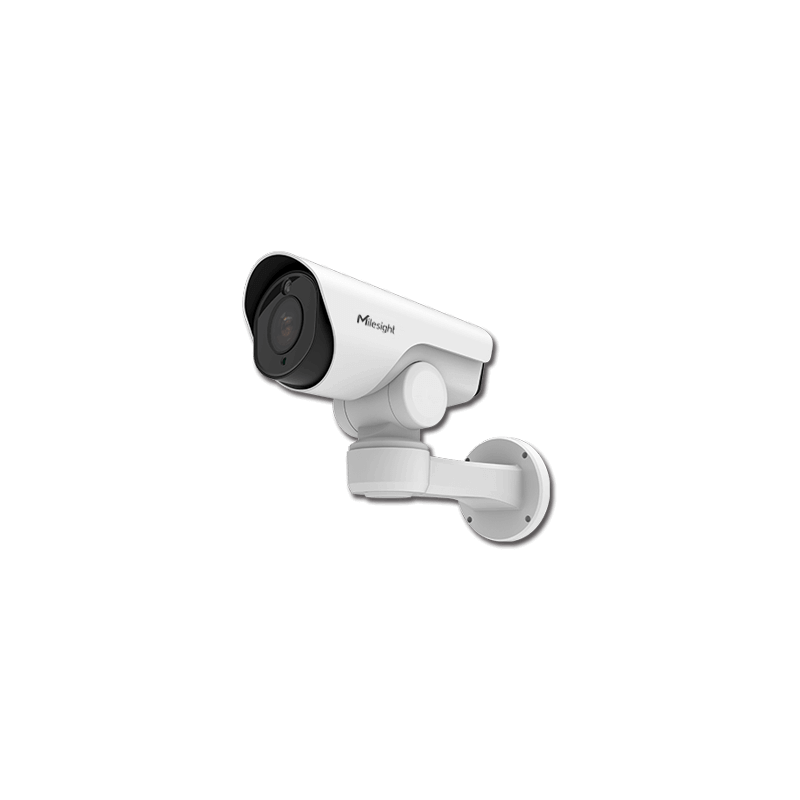

MS-C2961-X12RPC PTZ BULLET 12X 2MP

Cámara PTZ Bullet AI 12X PTZ

2MP · AI · Zoom óptico 12X · 3 en 1 Super WDR Pro · 0.002Lux Ultra Low-light · IP66 · Seguimiento automático PTZ · Posicionamiento 3D · Detección de movimiento PTZ · Hasta 100 fps · Lente 5.3~64mm · IR 140mts

Análisis de video con IA.
Conteo de personas
Detección de caras
Última tecnología LED IR
Diseño único para una fácil instalación
Soporte SIP/VoIP
LED blanco inteligente
Seguimiento automático de PTZ
Posicionamiento 3D
Desempañado Integral

Tareas flexibles de panorámica, inclinación y zoom

La cámara IP Milesight AI 12X PTZ Bullet ofrece la capacidad de rotar de forma rápida y precisa en una panorámica de 360° y una inclinación de 75° para inspeccionar una amplia gama de territorios. El usuario puede configurar fácilmente hasta 300 posiciones preestablecidas y hasta 8 rutas de patrulla y un máximo de 4 patrones de rutas de operación manual. Además, el usuario puede programar tareas PTZ específicas por fecha y hora.

Camera	Name	2MP 12X AI PTZ Bullet Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
	WDR	140dB Super WDR (Super WDR Pro is optional for T Series)
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	Digital Zoom	16X
	S/N	>55dB
	Lens	Focal Length	5.3∼64mm, 12X Optical Zoom
Zoom Speed		4s(Wide-Tele)
Field of View		H61°∼H5°/D69°∼D5°/V36°∼V2°
Focus Control		Auto/Semi-Auto/Manual
Minimum Working Distance		1000/1500mm (Wide/Tele)
Aperture		F1.6∼F2.8
Iris Control		Auto
PTZ		Pan Range/Pan Speed	360° endless/ Pan Manual Speed: 0.1°∼50°/s, Pan Preset Speed: 50°/s
	Tilt Range/Tilt Speed	-45°∼30°/ Tilt Manual Speed: 0.1°∼25°/s, Tilt Preset Speed: 25°/s
	Proportional Zoom	Support
	Preset Quantity	300
	Patrol	8 Patrols, up to 48 presets each patrol
	Pattern	4 Patterns
	Auto Tracking	Support
	Power Off Memory	Support
	Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
	IR	Irradiation Distance	Up to 140m
Irradiation Angle		Auto/Manual
Video		Max. Image Resolution	1920x1080
	Frame Rate	60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
	Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
	Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
	Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
	Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
	Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
	ROI	Up to 8 areas
	Image Settings	Saturation/Brightness/Contrast/Sharpness
	Web Access	Support IE/Firefox/Chrome/Safari Browser
	Audio	Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate		8/16/32/44.1/48KHz
Audio Bit Rate		16~256kbps
Two-way Audio		Support
Interface		Ethernet	1*RJ45 10M/100M Ethernet Port
	Audio I/O	1/1 (Optional)
	Alarm I/O	1/1 (Optional)
	Network	Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics		Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face Detection	Detect and capture faces, get real-time snapshots
	People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
	System	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function		BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support		Yes, Voice&Video-over-IP
Event Trigger		Motion Detection, Network Disconnection, External Input (Optional), Audio Alarm (Optional), etc.
Event Action		FTP Upload, SMTP Upload, SD Card Record, External Output (Optional), SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility		ONVIF Profile G & Q & S & T, API
General		Working Temperature	-40℃∼60℃
	Working Humidity	0∼90%(Non-condensing)
	Power Supply	PoE (802.3at) / DC 12V/2A±10%
	Power Consumption	15W MAX / 20W MAX (With IR on)
	Weather Proof	Up to IP66-rated for weather-resistant performance
	Dimensions	160mmX273.5mmX210mm(Wall Mount)/ 218mmX120mmX172mm(Pedestal Mount)
	Weight	2Kg(Wall Mount)/ 1.8Kg(Pedestal Mount)
	Warranty	2 Years/3 Years(Optional)

Referencia MS-C2961-X12RPC

Ficha técnica

Lentes: 5.3~64mm
Distancia IR: 140 mts
Estructura: PTZ Bullet
Resolución: 2Mp 1920x1080
